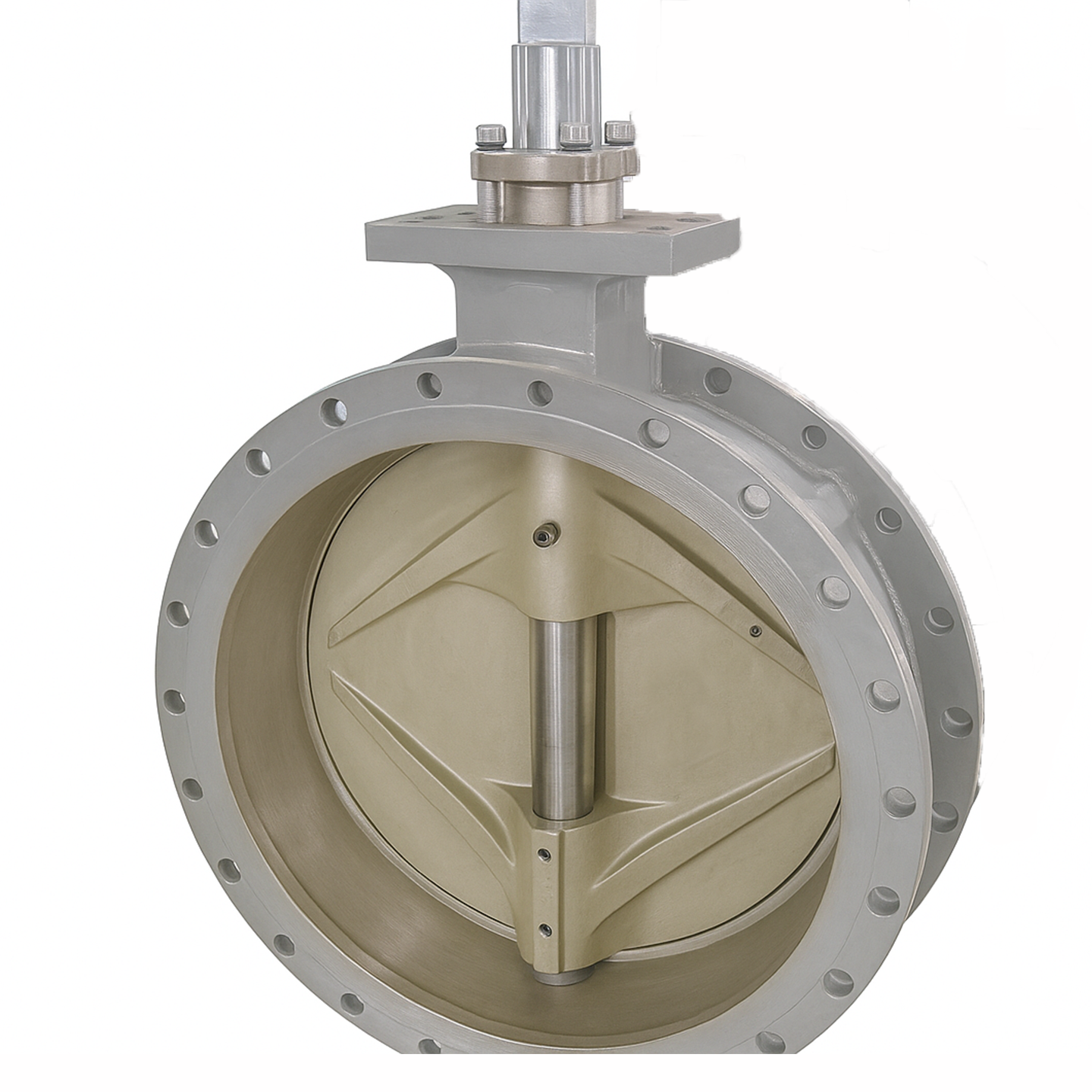

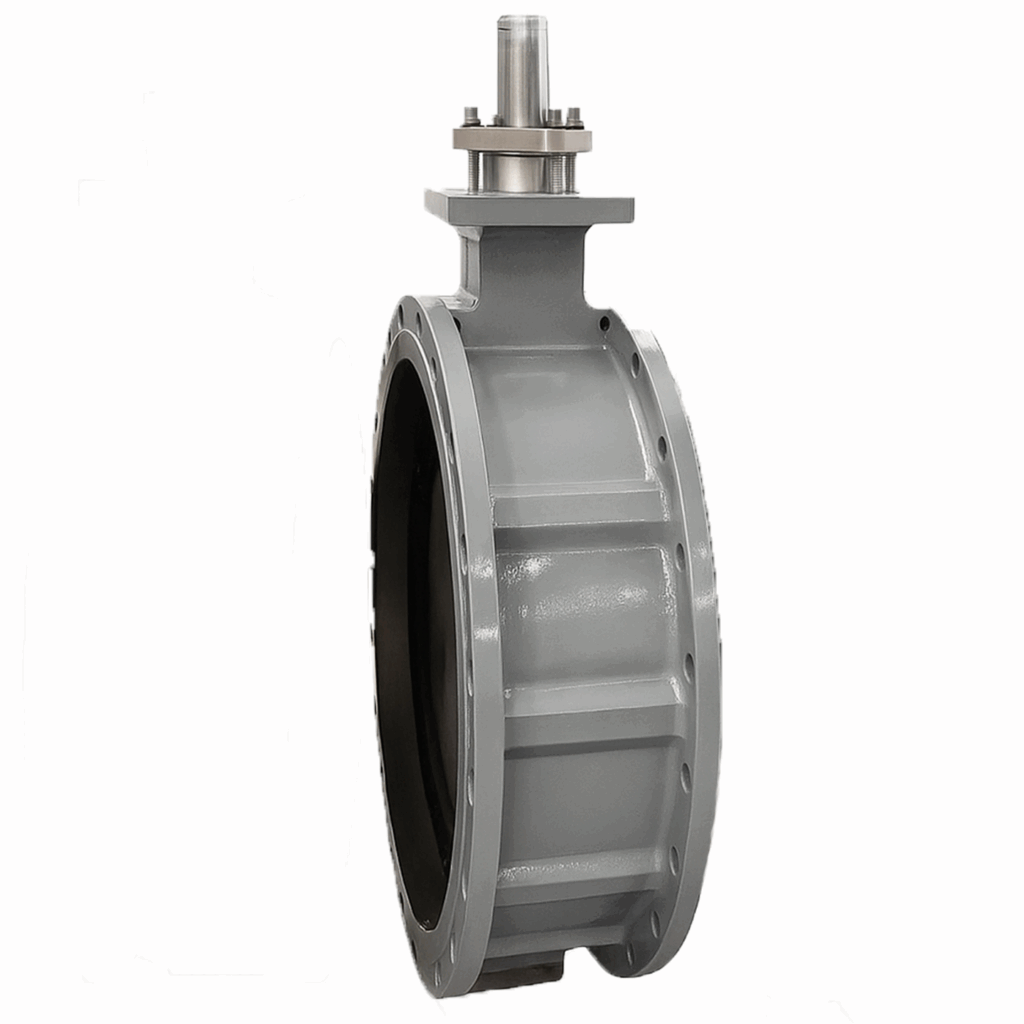

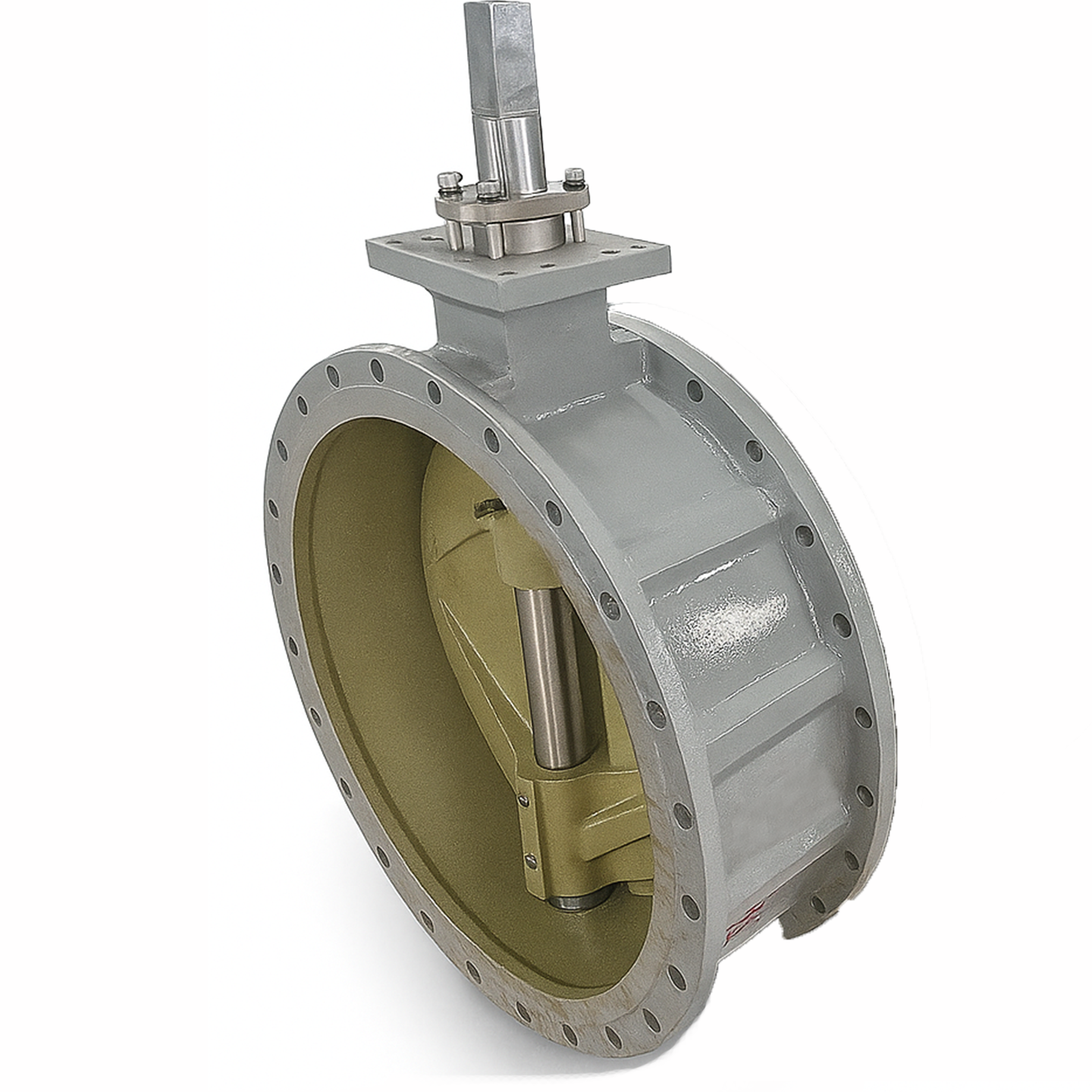

Triple Offset Hydraulic Butterfly Valve

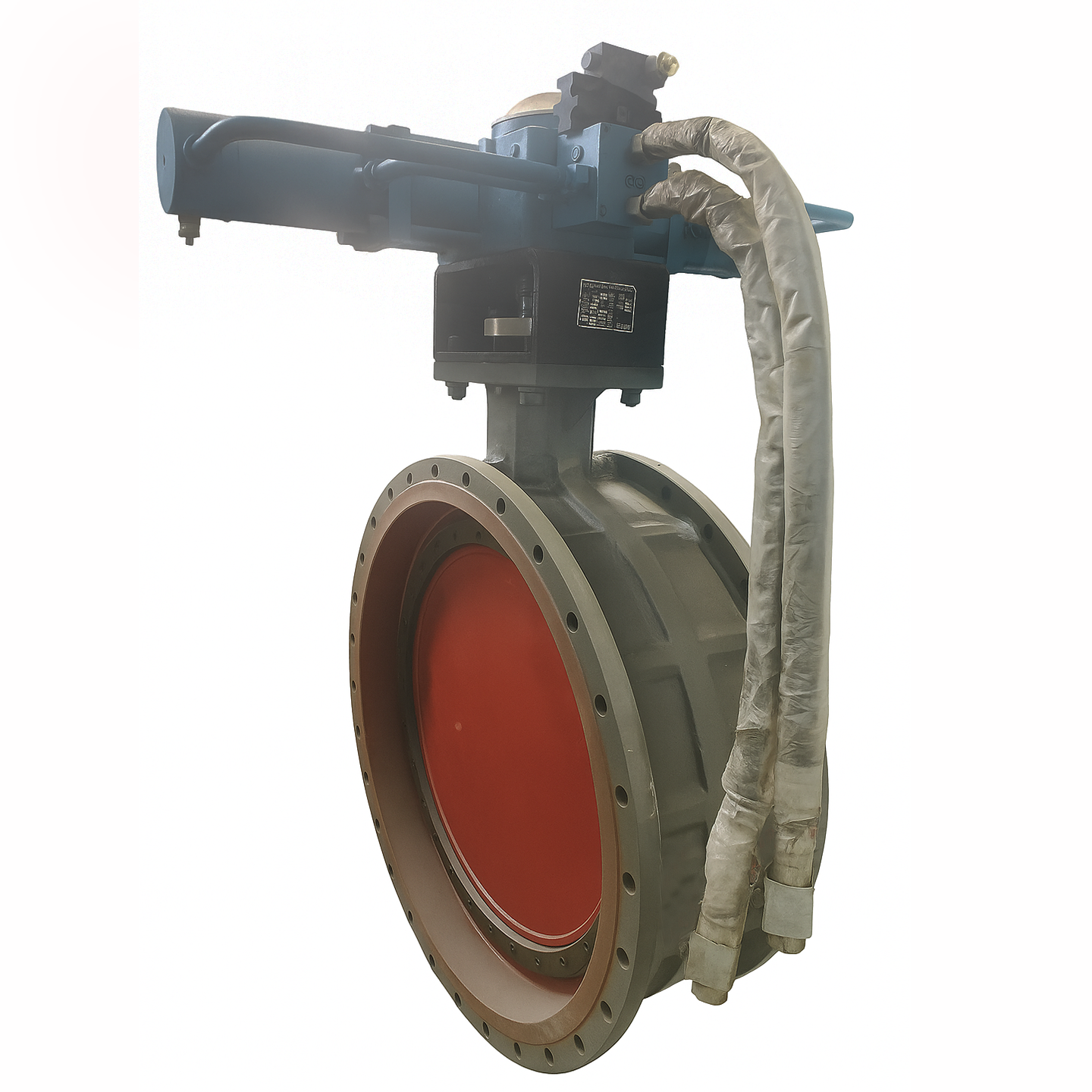

The Triple Eccentric Hydraulic Butterfly Valve with WCB Body is a high-performance isolation valve engineered to meet the most demanding industrial standards. Featuring advanced triple-offset geometry, it ensures zero-leakage sealing, extended durability, and smooth hydraulic actuation. With a design life of up to 1.5 million open-close cycles, this valve significantly reduces downtime and maintenance costs.

Triple Offset Butterfly Valve Description

Triple Offset Geometry – Non-rubbing rotation of the disc segment minimizes wear, extends service life, and ensures a tighter shut-off.

Zero Leakage – Provides bi-directional, Class VI bubble-tight shut-off.

Extended Service Life – Withstands up to 1.5 million operating cycles for long-term reliability.

Ease of Maintenance – The only design that offers a field-replaceable seal and seat ring, reducing downtime.

Torque Seated Design – Able to compensate for temperature and pressure fluctuations, ensuring reliable performance.

Resilient Metal Seat – Provides repeatable and long-term sealing performance.

Flexibility of Design – Can be customized to meet the unique requirements of different applications.

Keyed Shaft – Precision key eliminates backlash and lost motion.

Non-Galling Design – Enables a wide variety of material selections without the risk of galling.

Inherently Firesafe Design – Built with no soft components, ensuring fire-safe operation.

100% Italy OMB Replacement – Fully interchangeable with OMB valves for easy installation and cost savings.

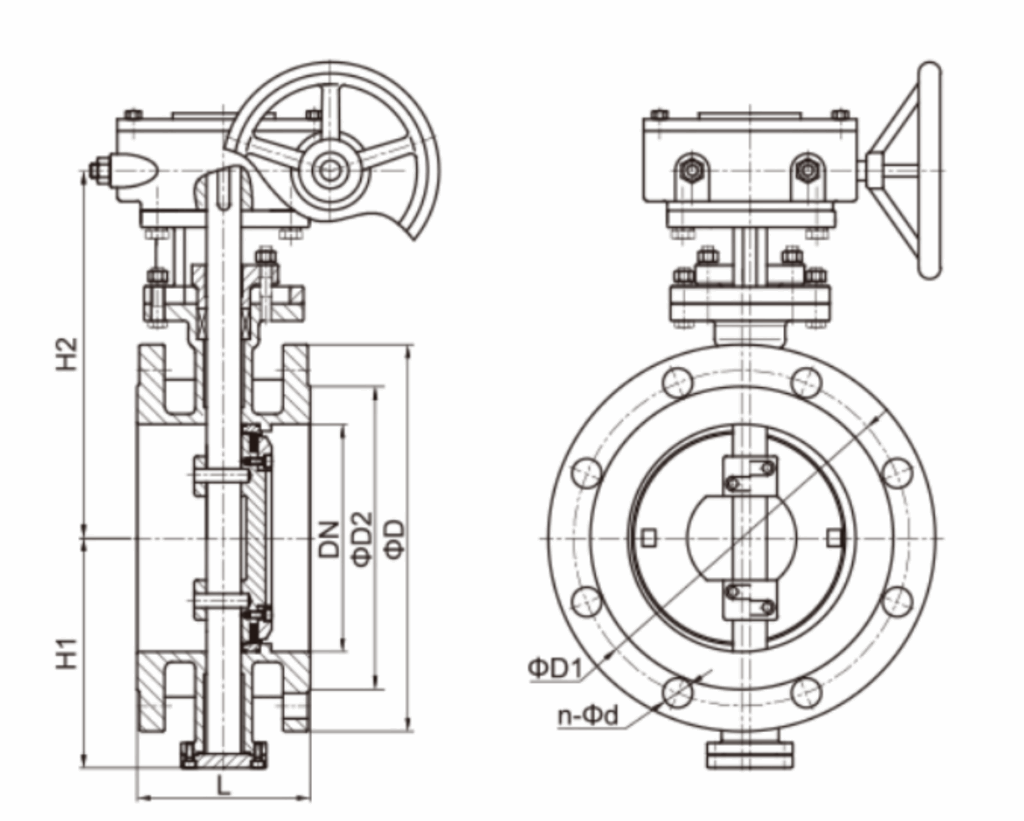

Product Structure

Triple Offset Butterfly Valve deliver reliable zero-leakage shutoff through their unique three-offset design. The friction-free geometry ensures extended service life, lower torque requirements, and suitability for automation. With a robust metal-to-metal seal, they perform effectively under high pressure and high temperature, resisting corrosion where soft-seated valves may fail.
